Designs >> Rocksim Library >>	All Rocksim Designs (2035 of 3219)Tag - Manufacturer:Red Arrow HobbiesTag - Scale:Black Brant:Black Brant II

red_arrow_black_brant_ii.rkt Rocksim Design File

• Manufacturer: Red Arrow Hobbies
• Scale: Black Brant : Black Brant II

Download red_arrow_black_brant_ii.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

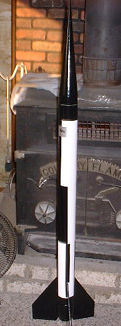

Kit Name: Red Arrow Hobbies - Black Brant II

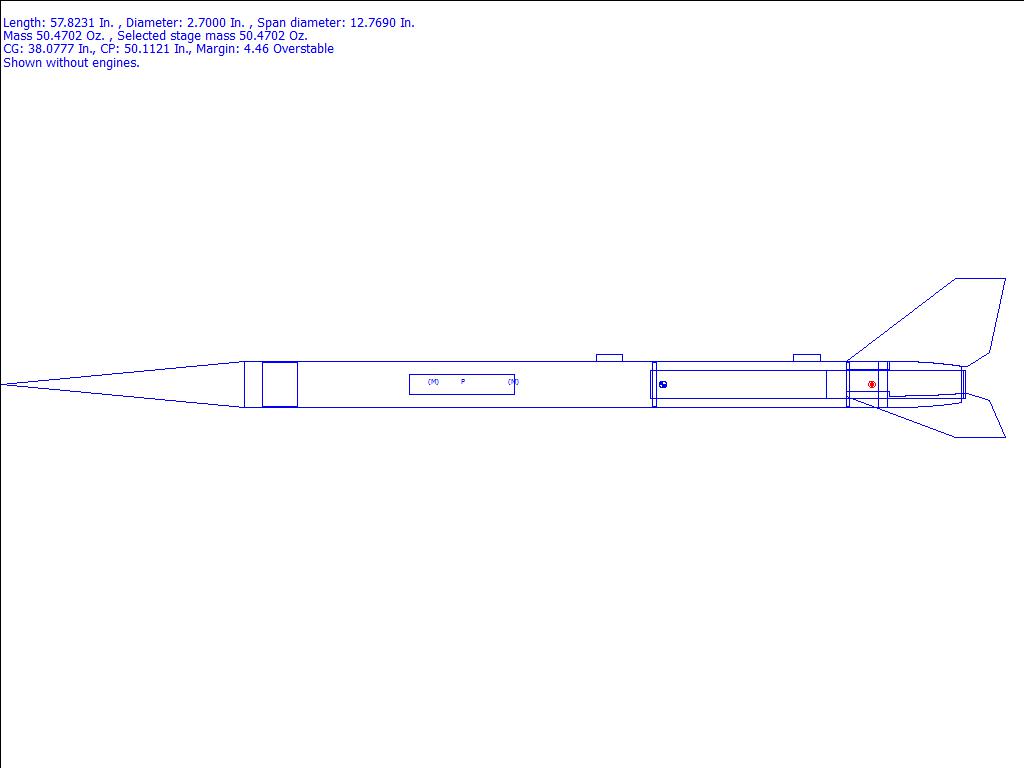

CG: 38.0777 inches from front
CP: 50.1121 inches from front
Margin: 4.46 Overstable

Parts Breakdown

• red_arrow_black_brant_ii.rkt Con Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Public Missiles CR-2.5-1.5 Ring
• Public Missiles CR-2.5-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Public Missiles LL-0.38 Launch Lug
• Public Missiles LL-0.38 Launch Lug
• red_arrow_black_brant_ii.rkt Fre Freeform Fin Set
• Custom Mass Object
• LOC/Precision Rip stop nylon Parachute (36.00 in)
• Custom Mass Object
• Public Missiles Elliptical Transition
