Hank! Rocksim Design File

Contributed by Joe Policy

• Manufacturer: Thrustline Aerospace

Designer: Thrustline Aerospace

Download thrustline_hank.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Thrustline Aerospace - Hank {Kit}

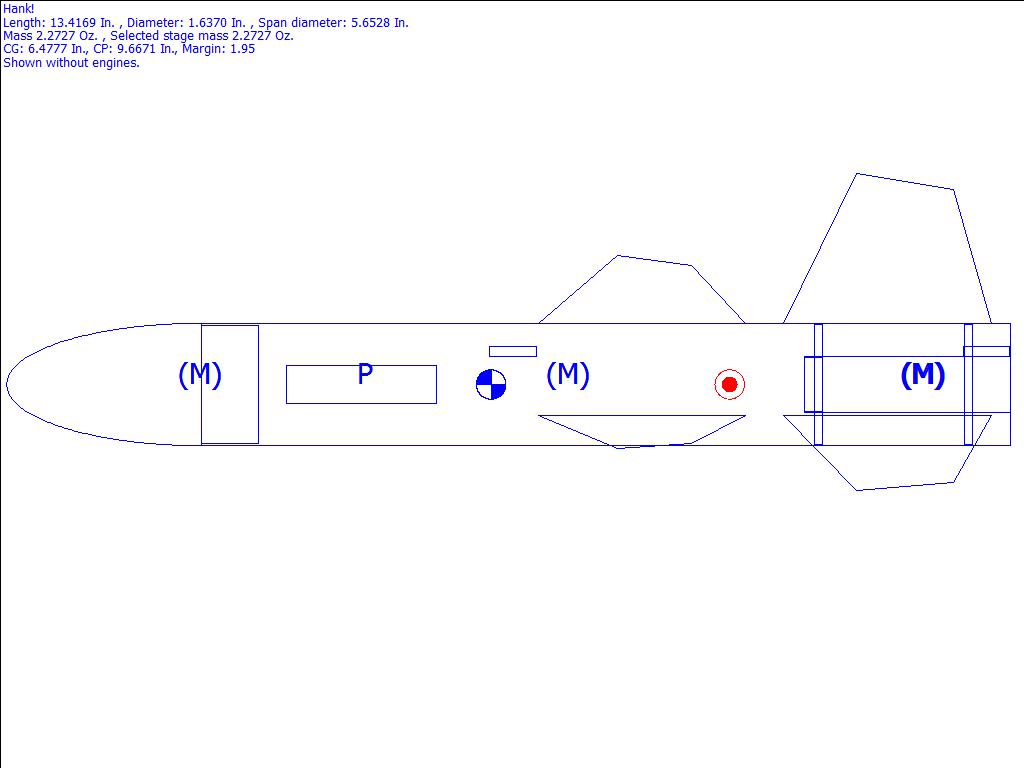

CG: 6.4777 inches from front
CP: 9.6671 inches from front
Margin: 1.95

Parts Breakdown

• Hank! Elliptical Nose Cone
• FlisKits SE-M Screw Eye - Medium Mass Object
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.81 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Hank! Freeform Fin Set Freeform Fin Set
• Estes ESTES 2321 Launch Lug
• Estes ESTES 2321 Launch Lug
• Custom Mylar Parachute (12.00 in)
• Custom Mass Object
• Custom Mass Object
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Hank! Freeform Fin Set Freeform Fin Set
