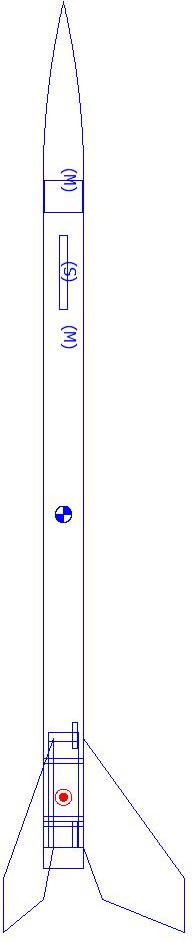

Cloud Warrior Rocksim Design File

Contributed by Joe Policy

• Manufacturer: Squirrel Works
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Style: Multi-Stage

Designer: Squirrel Works

Download squirrelworks_cloudwarrior.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

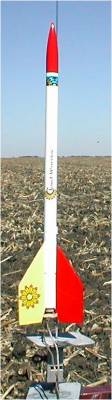

Kit Name: Squirrel Works - Cloud Warrior {Kit}

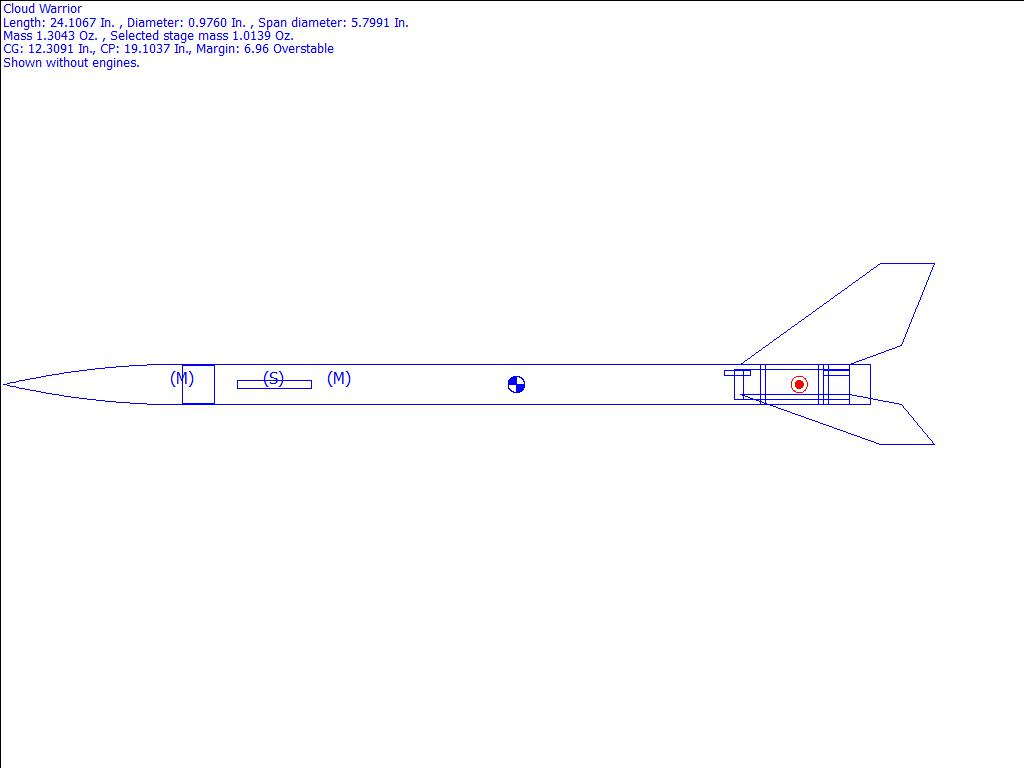

Length: 24.1250 inches
Style: Multi-Stage

CG: 14.5067 inches from front
CP: 20.7093 inches from front
Margin: 6.36 Overstable

Parts Breakdown

• Cloud Warrior Ogive Nose Cone
• FlisKits SE-M Screw Eye - Medium Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Estes 30162-2 Ring
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Mass Object
• Custom Mylar Streamer (0.0012 in)
• Estes ESTES 2321 Launch Lug
• Estes ESTES 2321 Launch Lug
• Cloud Warrior Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Custom Ring
• Custom Ring
• Cloud Warrior Freeform Fin Set Freeform Fin Set
