Designs >> Rocksim Library >>	All Rocksim Designs (750 of 3219)

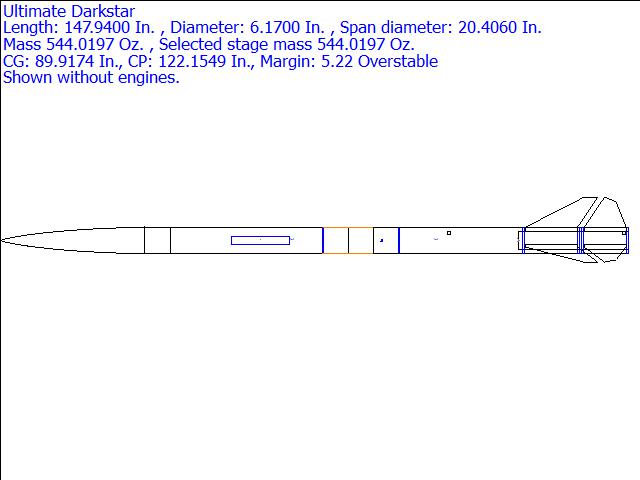

Ultimate Darkstar Rocksim Design File

Designer: Don Ball (Wolfstar Designs) Wildman Rocketry

Visit www.wildmanrocketry.com to download ultimate_Darkstar.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 89.9174 inches from front
CP: 122.1549 inches from front
Margin: 5.22 Overstable

Parts Breakdown

• ultimate_Darkstar.rkt Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Recon Recovery 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (81.90 in)
• Wildman Rocketry Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 60.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 26.00 in]
• ultimate_Darkstar.rkt Trapezoid Trapezoid Fin Set
• Wildman Rocketry Launch Lug
• Wildman Rocketry Launch Lug
• Wildman Rocketry Mass Object
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• Wildman Rocketry Ring
• ultimate_Darkstar.rkt Freeform F Freeform Fin Set
