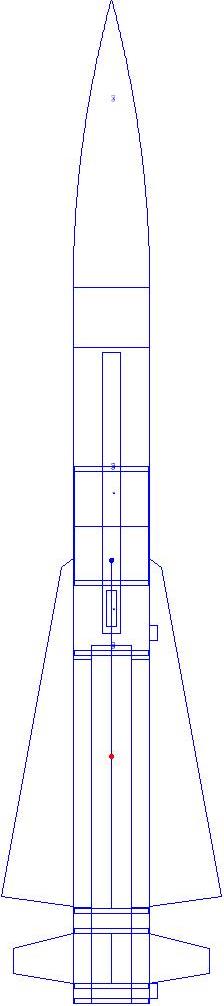

Smokin' Rockets SAAB Rocksim Design File

Comments: 7.5" version of SAAB. All Phenolic tubing and fins are glassed.

Designer: Data Entered by Dennis Lappert

Download smokinrockets_saab75.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

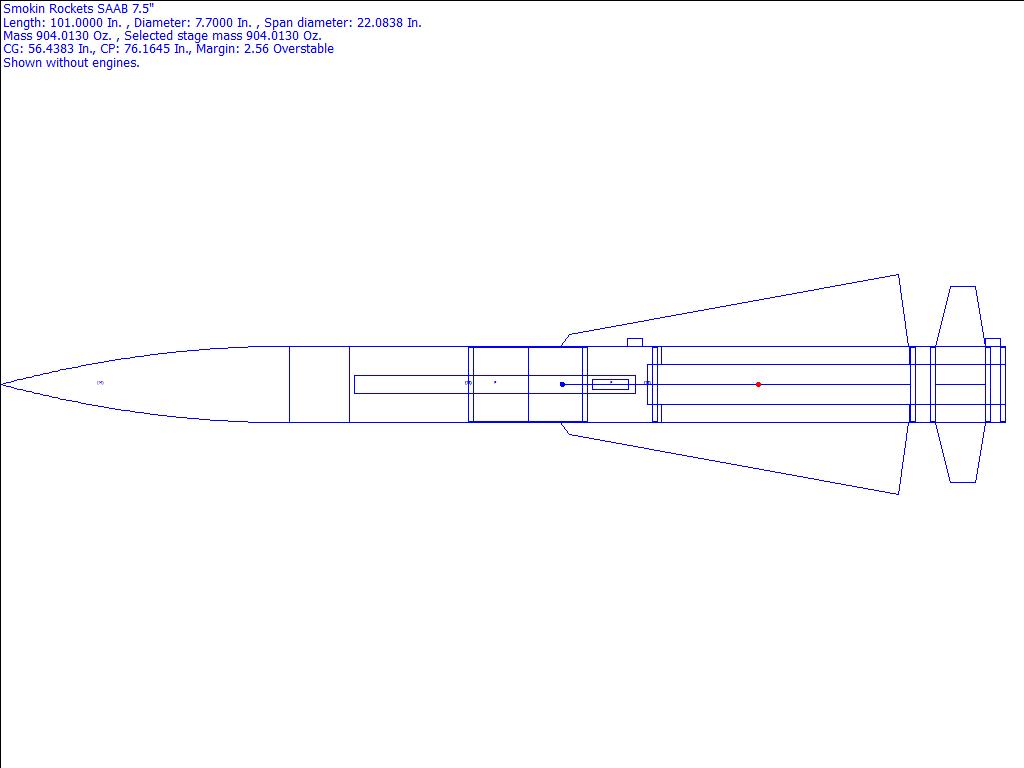

CG: 56.4383 inches from front
CP: 76.1645 inches from front
Margin: 2.56 Overstable

Parts Breakdown

• 7.5 Amram Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Public Missiles Ltd. CT-7.51 Ring
• Rocketman 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (170.00 in)
• Custom Mass Object
• Custom Mass Object
• Public Missiles CBP-7.5 Ring
• Public Missiles CBP-7.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (21.82 in)
• Custom Mass Object
• Custom Mass Object
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Custom Launch Lug
• Custom Launch Lug
• Smokin' Rockets SAAB Trapezoid F Trapezoid Fin Set
• Smokin' Rockets SAAB Freeform Fi Freeform Fin Set
