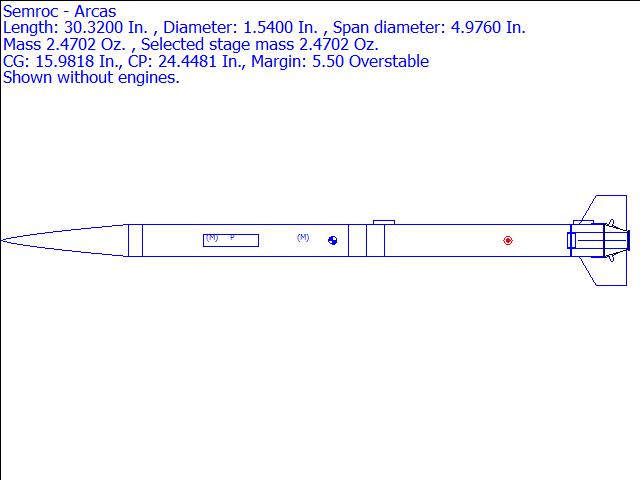

Semroc - Arcas Rocksim Design File

Comments: KS-8

Designer: Semroc Astronautics Corp

Visit www.semroc.com to download Semroc-Arcas.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 15.9818 inches from front
CP: 24.4481 inches from front
Margin: 5.50 Overstable

Parts Breakdown

• Semroc-Arcas.rkt Power Series Nose Cone
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.50 in]
• Semroc Polyethylene LDPE Parachute (16.00 in)
• Semroc Mass Object
• Semroc JT-58C Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc TR-7 Ring
• Semroc-Arcas.rkt Freeform Fin Se Freeform Fin Set
• Semroc LL-230 Launch Lug
• Semroc LL-230 Launch Lug
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Ring
• Semroc Conical Transition
