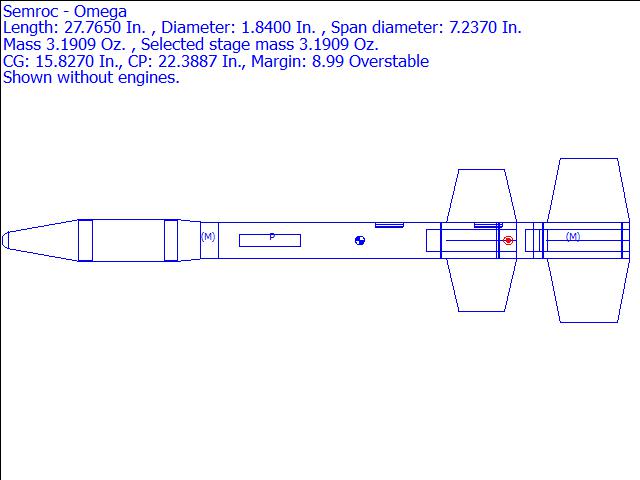

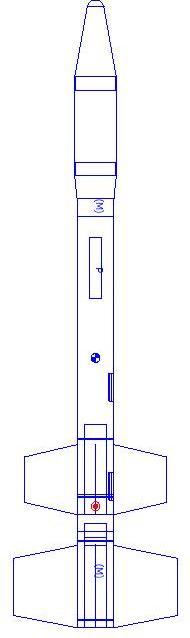

Semroc - Omega Rocksim Design File

Comments: KV-64

Designer: Semroc Astronautics Corp

Visit www.semroc.com to download Semroc-Omega.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 15.8270 inches from front
CP: 22.3887 inches from front
Margin: 8.99 Overstable

Parts Breakdown

• Semroc-Omega.rkt Power Series Nose Cone
• Semroc Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.37 in]
• Semroc LL-122 Launch Lug
• Semroc LL-122 Launch Lug
• Semroc Conical Transition
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Semroc-Omega.rkt Freeform Fin Se Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (16.00 in)
• Semroc-Omega Payload.rkt Freefor Freeform Fin Set
• Semroc-Omega Payload.rkt Freefor Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Semroc CR-9-60 Ring
• Semroc CR-9-60 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Semroc HTC-9 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Semroc CR-9-60 Ring
• Semroc CR-9-60 Ring
• Semroc-Omega.rkt Freeform Fin Se Freeform Fin Set
• Semroc EH-28 Engine Hook Standard Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.50 in]
