Designs >> Rocksim Library >>	All Rocksim Designs (1028 of 3219)Tag - Manufacturer:BSD High Power Rocketry

Sprint XL Rocksim Design File

Contributed by Michael Warnock

• Manufacturer: BSD High Power Rocketry

Designer: Scott Binder

Download bsd_sprintxl.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

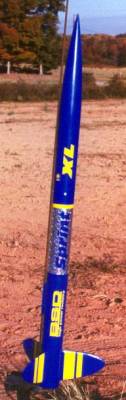

Kit Name: BSD High Power Rocketry - Sprint XL {Kit}

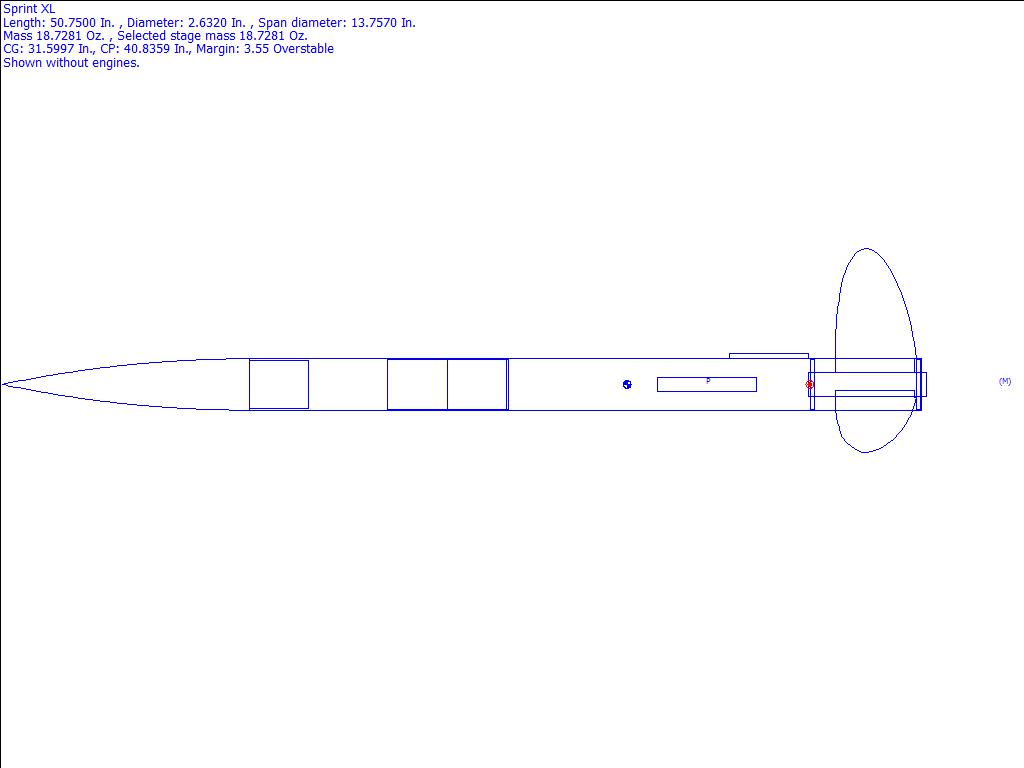

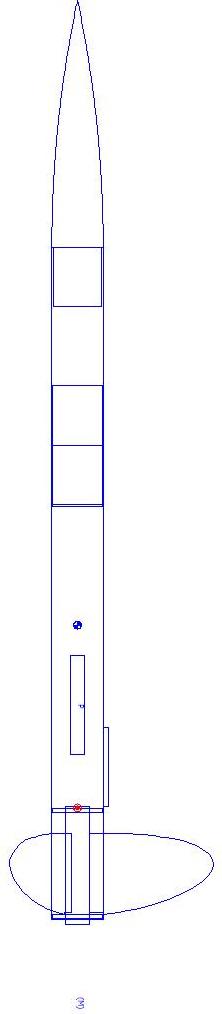

CG: 31.5997 inches from front
CP: 40.8359 inches from front
Margin: 3.55 Overstable

Parts Breakdown

• Aerotech HV Arcas Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm Body Tube [Length: 10.00 in]
• Vaughn Bros. TC-2.58 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm Body Tube [Length: 24.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Mass Object
• Sprint XL Freeform Fin Set Freeform Fin Set
• Custom Ring
• LOC LOC LL25 Launch Lug
• Custom Rip stop nylon Parachute (30.00 in)
• Custom Ring
• Custom Ring
