Estes - Black Brant III Rocksim Design File

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Scale: Black Brant : Black Brant III
• Skill Level: 2
• Style: Scale

Comments: Measurements taken from actual kit components.

Designer: Estes Industries RockSim file by David J. Thomas

Download BlackBrant3.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

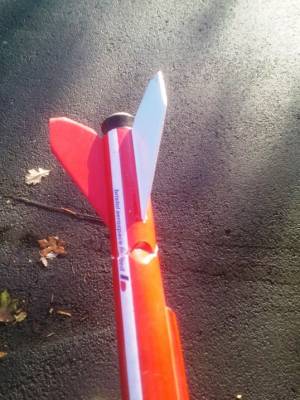

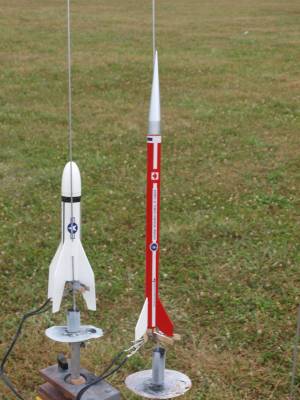

Kit Name: Estes - Black Brant III {Kit} (1293) [?-?, 2018-]
Diameter: 0.9760 inches
Length: 20.6000 inches
Style: Scale

Parts Breakdown

• Estes PowerSeries Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Estes 30162-2 Ring
• Apogee Components Paper Ring (0.7402 - 0.9449 in)
• Apogee Components Paper Ring (0.7402 - 0.9449 in)
• Estes Paper Ring (0.0000 - 0.7098 in)
• Estes Engine hook Standard size Mass Object
• Custom Mass Object
• Estes ESTES 2321 Launch Lug
• Estes ESTES 2321 Launch Lug
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Balsa Freeform Fin Set
• Estes Conical Transition
