Estes - Star Orbiter Rocksim Design File

• Family: Estes : Pro Series II
• Manufacturer: Estes
• Power: Mid-Power
• Recovery: Parachute
• Style: Sport

Comments: Another Simulation by Bruce S. Levison. Drawn from a picture of the parts at the Estes website

Designer: Estes Pro Series II Star Orbiter #9716

Download Estes Pro Series II Star Orbiter.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

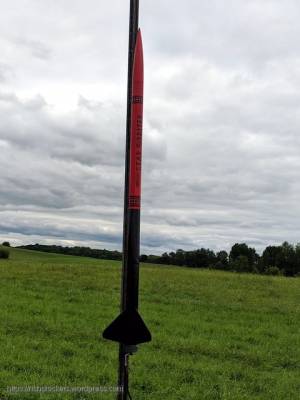

Kit Name: Estes - Star Orbiter {Kit} (9716) [2016-?]
Diameter: 1.6400 inches
Length: 45.2000 inches
Style: Sport

Parts Breakdown

• Estes - Star Orbiter Power Serie Nose Cone
• Custom Ogive Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Estes Ring
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Launch Lug
• Estes - Star Orbiter Freeform Fi Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.46 in]
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Launch Lug
