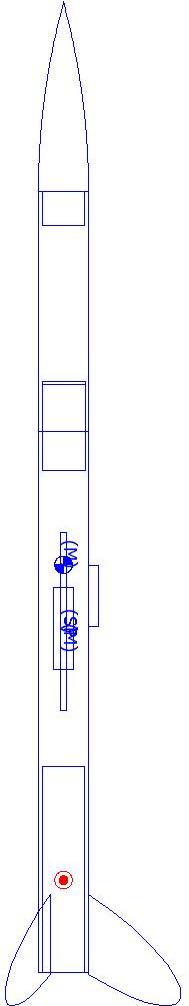

Rocket Vision Spit Fire Rocksim Design File

• Manufacturer: Rocket Vision

Comments: Rocket Vision Rugged Rocket drawn by Bruce S. Levison

Download oop_rocketvision_spitfire.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Rocket Vision - Spit Fire

CG: 12.6105 inches from front
CP: 19.6745 inches from front
Margin: 6.28 Overstable

Parts Breakdown

• Check-Six Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.37 in]
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.12 in]
• Custom Launch Lug
• Rocket Vision Spit Fire Freeform Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.62 in]
• Custom Rip stop nylon Parachute (11.00 in)
• Custom Nomex Streamer (0.0030 in)
• Custom Mass Object
• Custom Mass Object
