Designs >> Rocksim Library >>	All Rocksim Designs (1892 of 3219)

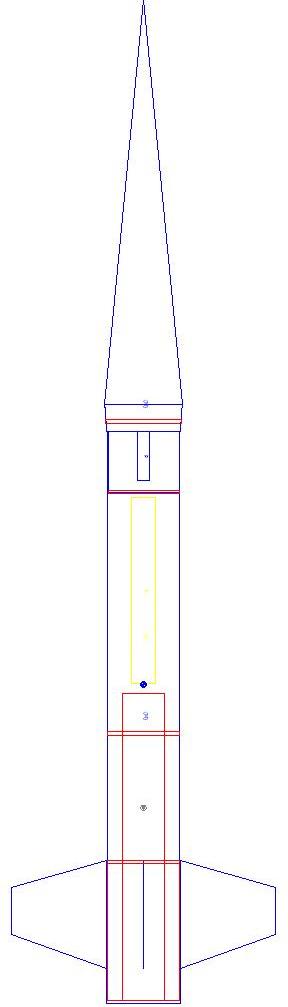

Performance Rocketry Nike Smoke (5.5) Rocksim Design File

Comments: Sim is of 75mm mount with parts weighed as built by Art Upton

Download performance_rocketry_nikesmoke_5in.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

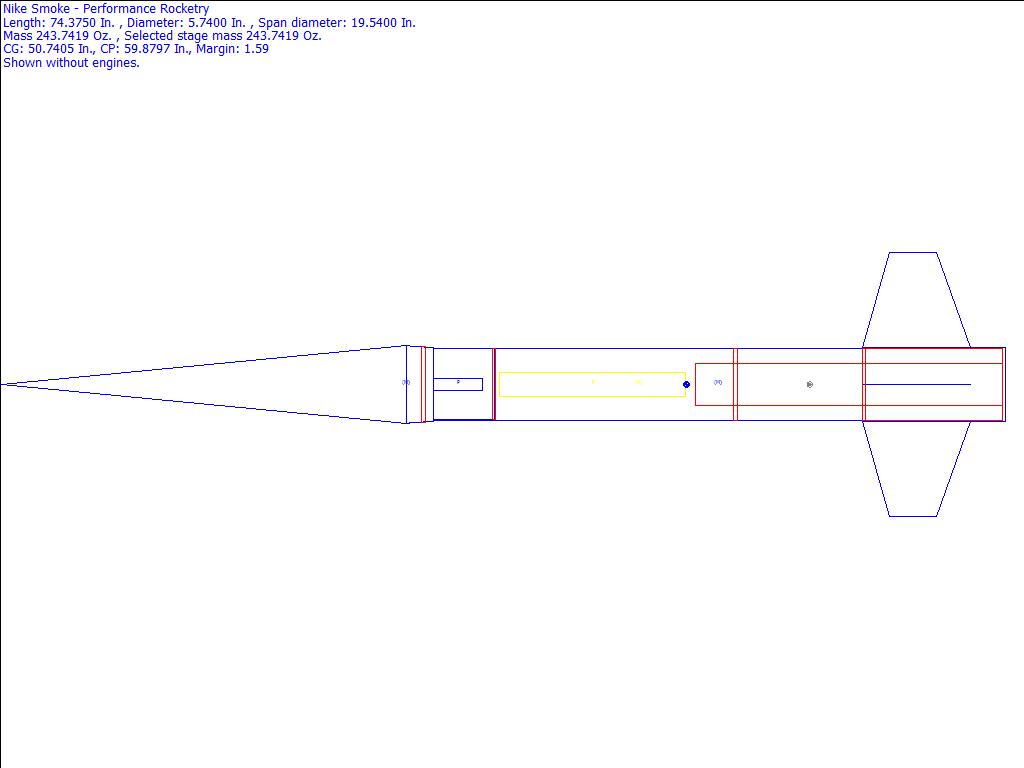

CG: 50.7405 inches from front
CP: 59.8797 inches from front
Margin: 1.59

Parts Breakdown

• Performance Rocketry Nike Smoke Nose Cone
• Custom Mass Object
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 31.75 in]
• LOC Precision LOC CR-5.38-3.00 Ring
• Custom Mass Object
• Custom Mass Object
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (82.69 in)
• LOC Precision LOC BP-5.38 Ring
• LOC Precision LOC BP-5.38 Ring
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (21.82 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.62 in]
• LOC Precision LOC CR-5.38-3.00 Ring
• LOC Precision LOC CR-5.38-3.00 Ring
• Performance Rocketry Nike Smoke Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 22.75 in]
