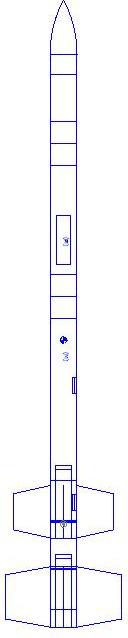

Estes Omega (elongated) 2 Rocksim Design File

Comments: measurements official 1/26/14

Download Omega upscaled II .rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 21.0946 inches from front
CP: 32.5017 inches from front
Margin: 6.83 Overstable

Parts Breakdown

• Omega upscaled II .rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.50 in]
• Rad Rockets Coupler1 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Rad Rockets Coupler1 Ring
• Rad Rockets FRI Parachute protector Mass Object
• Rad Rockets Polyethylene LDPE Parachute (18.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.50 in]
• BalsaMachining.com CR50H60-F Ring
• BalsaMachining.com CR50H60-F Ring
• BalsaMachining.com EB24-P Ring
• Omega upscaled II .rkt Freeform Freeform Fin Set
• Omega upscaled II .rkt Freeform Freeform Fin Set
• Freeform Fin Set
• BalsaMachining.com LL316-200 Launch Lug
• BalsaMachining.com LL316-200 Launch Lug
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.50 in]
• Rad Rockets Coupler1 Ring
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.50 in]
• BalsaMachining.com CR50H60-F Ring
• BalsaMachining.com CR50H60-F Ring
• BalsaMachining.com EB24-P Ring
• Omega upscaled II .rkt Freeform Freeform Fin Set
