EZI-65 Rocksim Design File

Contributed by Matt Stum

Comments: Measurements taken from LOC EZI-65 kit.

Designer: LOC

Download loc_ezi_65.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

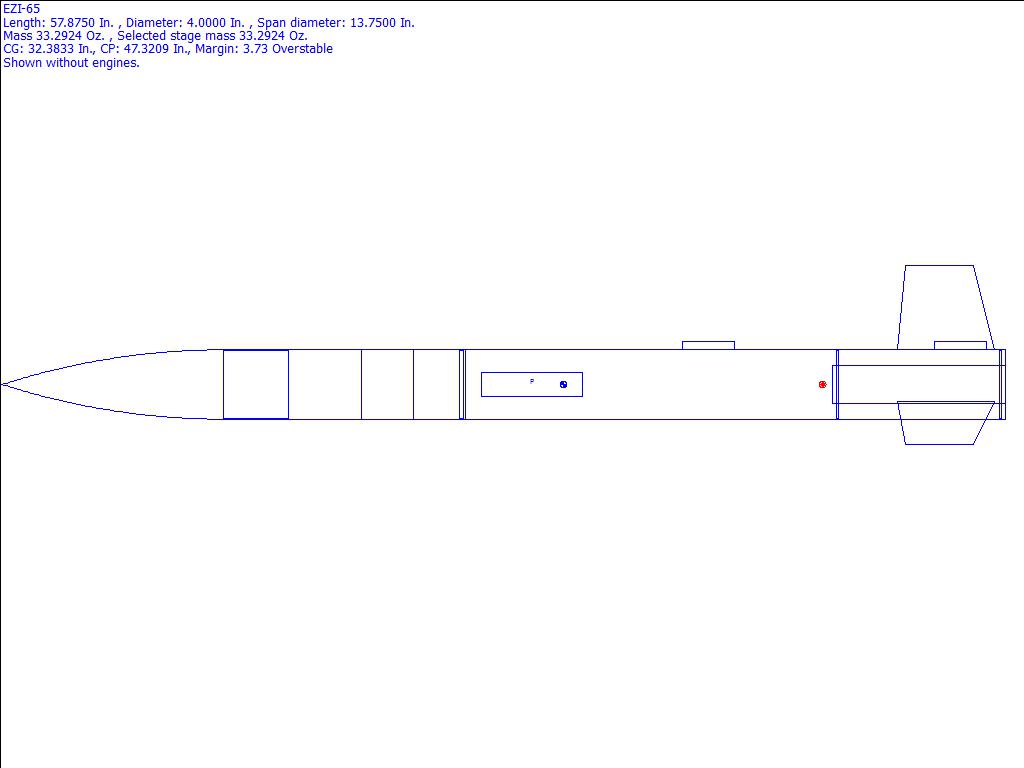

Kit Name: LOC/Precision - EZI-65 {Kit} (PK-11) [1985-]
Diameter: 4.0000 inches
Style: Sport

CG: 32.3833 inches from front
CP: 47.3209 inches from front
Margin: 3.73 Overstable

Parts Breakdown

Advanced Rocketry Group Ltd. Evo Nose Cone

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.00 in]

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]

Custom Ring

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.12 in]

EZI-65 Trapezoid Fin Set Trapezoid Fin Set

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]

LOC LOC LL50 Launch Lug

LOC LOC LL50 Launch Lug

Custom Rip stop nylon Parachute (35.00 in)

Custom Ring

Custom Ring
