Designs >> Rocksim Library >>	All Rocksim Designs (1005 of 3219)Tag - Manufacturer:BSD High Power Rocketry

bsd_38special.rkt Rocksim Design File

Contributed by Ken Alger

• Manufacturer: BSD High Power Rocketry

Download bsd_38special.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

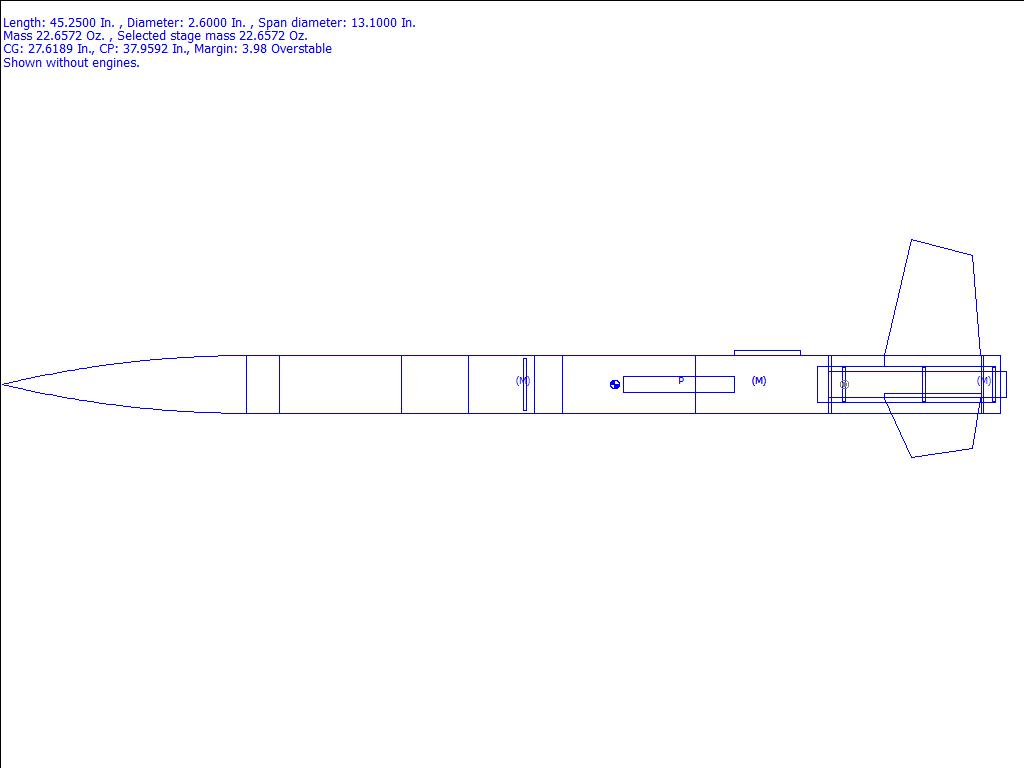

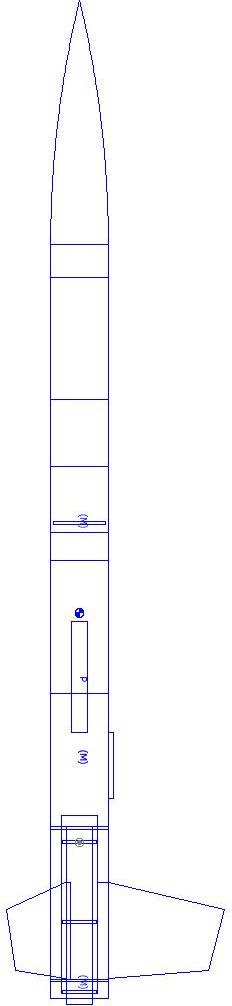

Kit Name: BSD High Power Rocketry - 38 Special {Kit}

CG: 27.6189 inches from front
CP: 37.9592 inches from front
Margin: 3.98 Overstable

Parts Breakdown

• bsd_38special.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Custom Launch Lug
• bsd_38special.rkt Freeform Fin S Freeform Fin Set
• Custom Mass Object
• Custom 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (30.00 in)
• Custom Mass Object
• Custom Mass Object
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom Ring
• Custom Ring
• Custom Ring
