Phoenix - c 2008 Madcow Rocketry Rocksim Design File

• Manufacturer: Madcow Rocketry
• Recovery: Parachute
• Scale: AIM-54 Phoenix
• Scale: AIM-54C Phoenix
• Style: Scale

Download madcow_phoenix_4.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

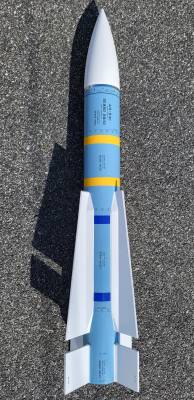

Kit Name: Madcow Rocketry - Phoenix (4") {Kit} (K-136)
Diameter: 4.0000 inches
Length: 40.5000 inches
Style: Scale

CG: 22.0000 inches from front
CP: 27.1299 inches from front
Margin: 1.28

Parts Breakdown

• Madcow Rocketry Seawolf Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Madcow C101-600 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 19.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Madcow Rocketry Phoenix Trapezoi Trapezoid Fin Set
• Madcow CR10138 Ring
• Madcow CR10138 Ring
• Madcow Rocketry Rip stop nylon Parachute (60.00 in)
• Madcow Rocketry Phoenix Freeform Freeform Fin Set
