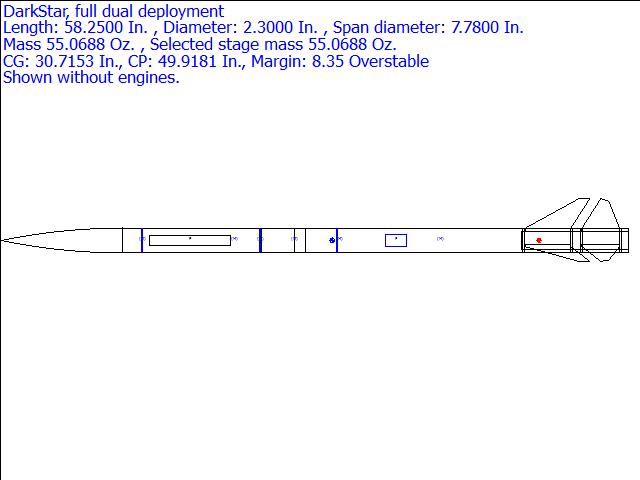

DarkStar, full dual deployment Rocksim Design File

Comments: sleek, slim, dual deploy, 38mm motor mount, All Glass

Designer: DLB

Visit www.wolfstardesigns.com to download darkstar_long.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 30.7153 inches from front
CP: 49.9181 inches from front
Margin: 8.35 Overstable

Parts Breakdown

• DarkStar_lite.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.00 in]
• Custom Rip stop nylon Parachute (45.00 in)
• Custom Ring
• Custom Mass Object
• Custom Ring
• Custom Mass Object
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• Custom Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Public Missiles CR-2.1-1.5 Ring
• Public Missiles CR-2.1-1.5 Ring
• Public Missiles CR-2.1-1.5 Ring
• darkstar_long.rkt Freeform Fin S Freeform Fin Set
• Custom Mass Object
• Custom Ring
• LOC/Precision Rip stop nylon Parachute (12.00 in)
• darkstar_long.rkt Freeform Fin S Freeform Fin Set
• Public Missiles CR-2.1-1.5 Ring
• Custom Mass Object
