Designs >> Rocksim Library >>	All Rocksim Designs (829 of 3219)Tag - Manufacturer:AAA Model Aviation FuelsTag - Motor Size:29 mmTag - Power:Mid-Power

Quadra G Rocksim Design File

• Manufacturer: AAA Model Aviation Fuels
• Motor Size: 29 mm
• Power: Mid-Power

Download oop_aaa_quadg.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

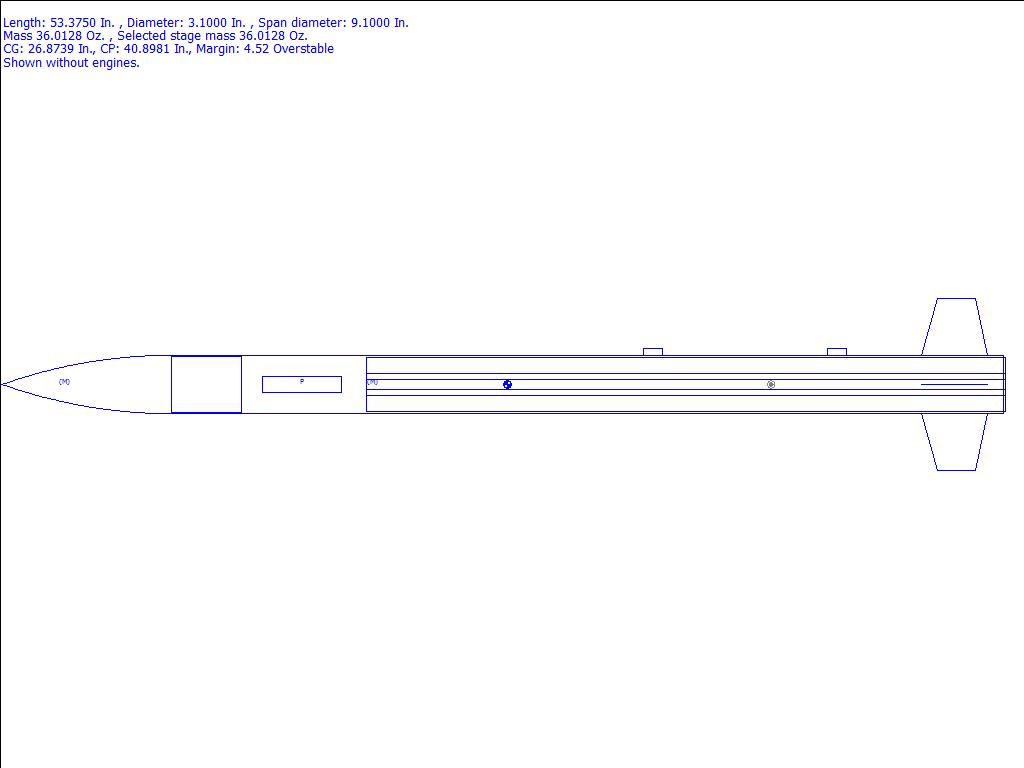

Kit Name: AAA Model Aviation Fuels - Quadra G {Kit}
Diameter: 3.1000 inches

CG: 26.8739 inches from front
CP: 40.8981 inches from front
Margin: 4.52 Overstable

Parts Breakdown

• oop_aaa_quadg.rkt Ogive Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 44.25 in]
• oop_aaa_quadg.rkt Trapezoid Fin Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Rip stop nylon Parachute (25.00 in)
• Custom Mass Object
• Estes "1/4""" Launch Lug
• Estes "1/4""" Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]

Related Kits:

• AAA Model Aviation Fuels - Quadra G {Kit}
